双控开关原理和布管接线

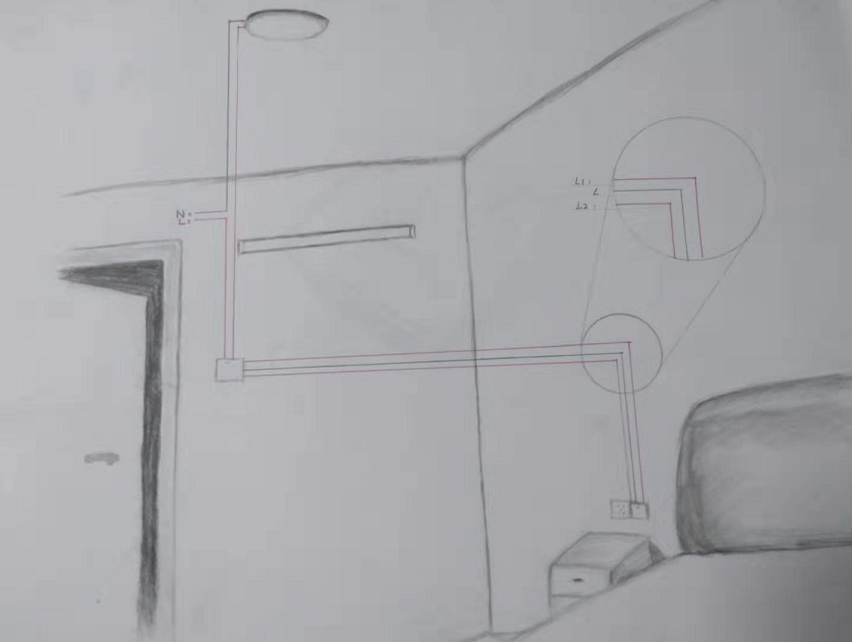

图:1
![49da8a14b5ed0606795c914407b0374.png](https://cdn.steemitimages.com/DQmXvDnm9YGKFWaBxkcgke2k1KAUVA5WsMZryXN3r2GKsaR/49da8a14b5ed0606795c914407b0374.png)
### 摆设
在我们日常生活中,经常回看到房间里的看开关是由两个控制面板组成的。随着装修公司的逐步完善,现在很多家庭中大厅的灯也是两个控制开关。
这就是我们水电工程中俗称双控开关。双控开关是方便我们日常生活中合理的使用对灯的控制。
什么叫合理的使用呢?今天我们来认识双控开光的妙用和它的原理。
----
如上图:1中,这是个普通房间的基本摆设,我简单的绘制出他的示意图。
- 进门后双控开关:#1。我进入房间的时候,我们的眼睛处于适明状态。一下子没有适应黑暗的房间。这个时候进门就需要开关,所以开关处于进门第一时间触碰到的地方。
- 开关位置高度:根据大众身高高度。在水电施工的时候。总结出一个合理的高度。进门开关位置处于面板距地面1.35m,这个高度适应与任何人。
- 床头柜上的双控开关,#2.在床头柜的上面一般都会新置一个双控开关。高度是面板底部距地面0.5m。因为床头柜的高度是0.4m。这个高度不会影响到床头柜摆放。而且关灯比较适合。
----

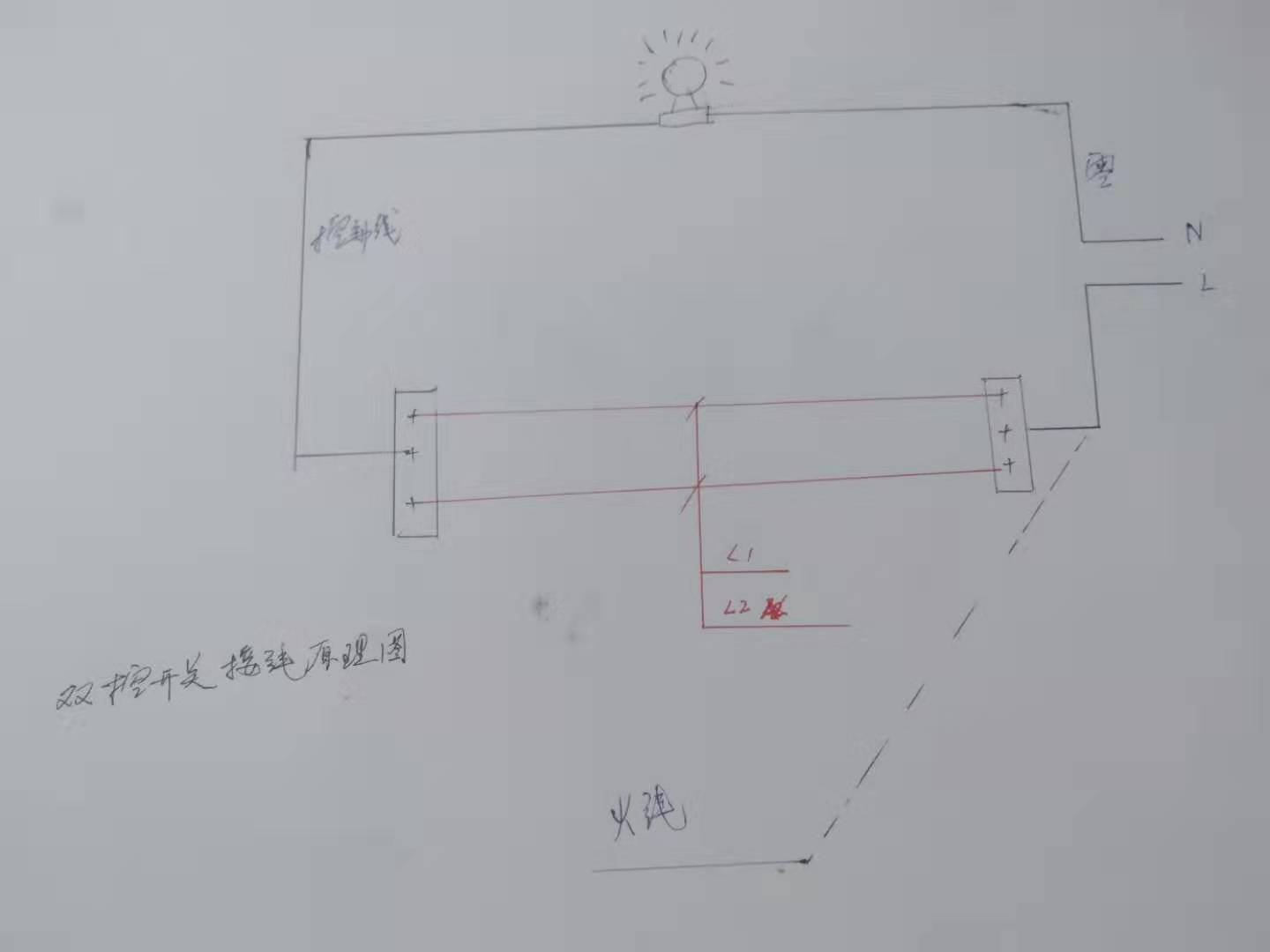

图:2
![4d80efd4e1696f20ad5dc91cfb12c33.jpg](https://cdn.steemitimages.com/DQmX3vfExyM64VW8KYokNcedVJpQ2pA392KTRUJc1auZygx/4d80efd4e1696f20ad5dc91cfb12c33.jpg)
### 布线
双控开关布线原理如图:2。双控开关的原理和单控开关的原理有些差距,在单控开关布线的时候,只要一条火线进开关,生成另一条控制线到灯上,这样就完成它的控制原理。
然而双控开关有些入行不就的工匠没有弄懂它的原理,会触=措手不及。双控开关中,零线和单控开关一样,直接进入灯泡中。
- 另一条是火线才进开关,
- 火线:L。接控制开关中间位置。控制面板如图:3.
- 辅助线:L1,L2。导管至面板:2。L1,L2。到面板:2之后连接两个端子。两条辅助线两头都接在端子上。
- 控制线:L.控制线由面板;2中间的端子引出。如图:4.直接布线到灯泡的位置。
这样就完成双控开关的布线了。
---

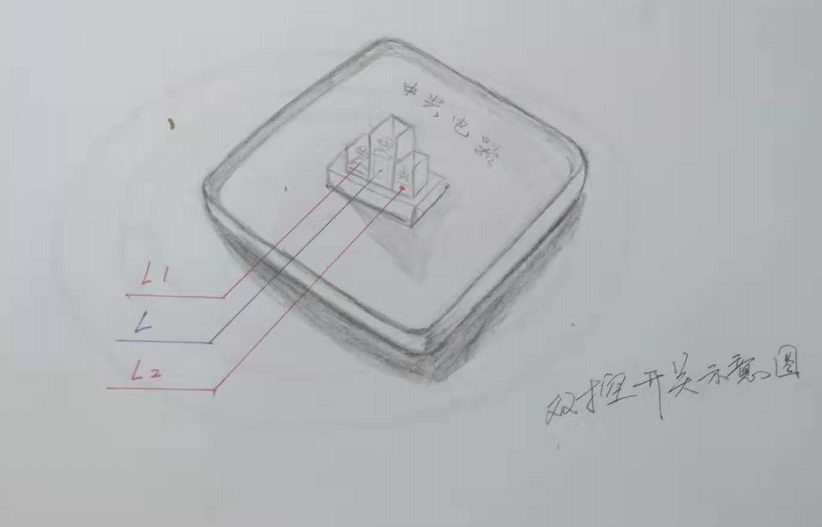

图:3
![ef1b21bfabfc7a235f0c8adafa11893.png](https://cdn.steemitimages.com/DQmcPbhZLezxsc8dhaYXcj3DWyD9Ru9FkEYxmJxKP4MGav9/ef1b21bfabfc7a235f0c8adafa11893.png)

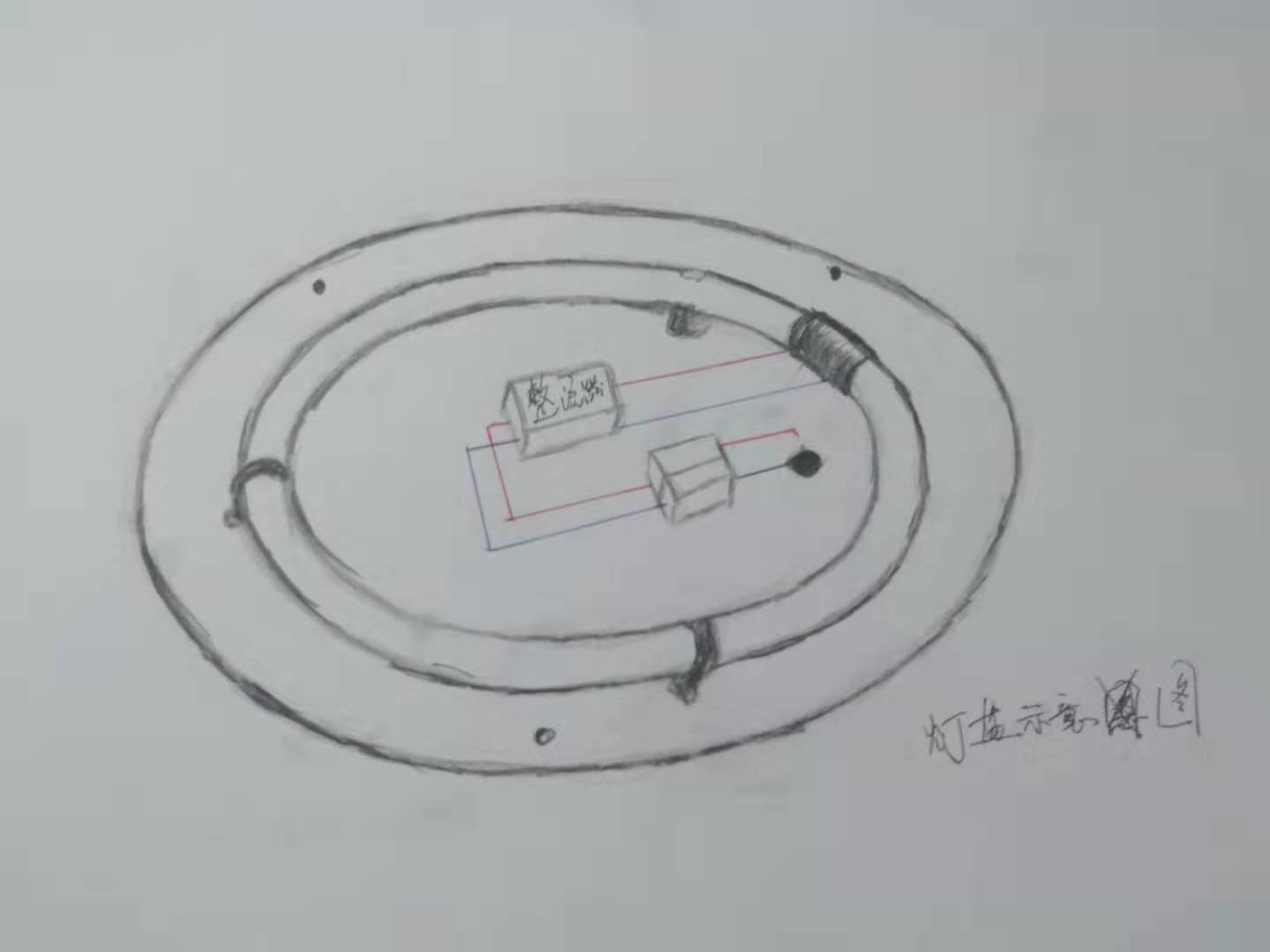

图:4
![f32711e48faf9a804e1478fb13fff4e.jpg](https://cdn.steemitimages.com/DQmZV6LiS7iTdF8nqz3rdpMR1MNm1QNewwBP32m1d56Zw6e/f32711e48faf9a804e1478fb13fff4e.jpg)
### 双控开关面板原理
双控开关原理其实很简单。中间点是固定的。两条控制线上下错位控制,下面解说面板的原理。
- L1,L2.端子,开关两个都朝上:通电状态。
- L1,L2. 端子,开关两个都朝下:通电状态。
- 面板1.中的L1,朝上,面板2,L2.朝下:断电状态。
- 面板1,中的L1朝下,面板2中的L2.朝上:断电状态。
就想我们小时玩的亚跷跷板原理一样的。
----
### 吸顶灯接线法
在图:1.中,屋顶的吸顶灯拆开之后如图:4。内容其实很简单。里面具体有以下4个部件组成。
- 接线端子,
- 整流器
- 灯管
- 灯架
-----
### 安装
一,灯架安装,灯架上面有三个小孔,这写小孔用于锁自攻螺丝,在安装前先把灯架用力顶到屋顶,用铅笔画出三个小孔的位置,
然后用冲击转打出眼,之后用塑料塞打到新置的眼中,然后用自攻螺丝锁紧即可。
注意:在锁紧自攻螺丝前要先把电线穿出中间的的孔。

二,接线。电源入线后,两条线连接到接线端除,一般灯架会连接好内部构件,我们只需要在接线端上连接上电源即可。
如果灯架被破坏过,或者要重新连接。按以下步骤即可完成
-----
注意:如果不是专业电工人员,请勿私自安装,如果需要学习或者实践,请有专业电工陪同下实施。电有危险。

吸顶灯详细资料可通过百度对比,提供地址:https://baike.baidu.com/item/%E5%90%B8%E9%A1%B6%E7%81%AF
双控开关详细资料可通过百度对比,提供地址:https://baike.baidu.com/item/%E5%8F%8C%E6%8E%A7%E5%BC%80%E5%85%B3
